Enables fast fleet readiness

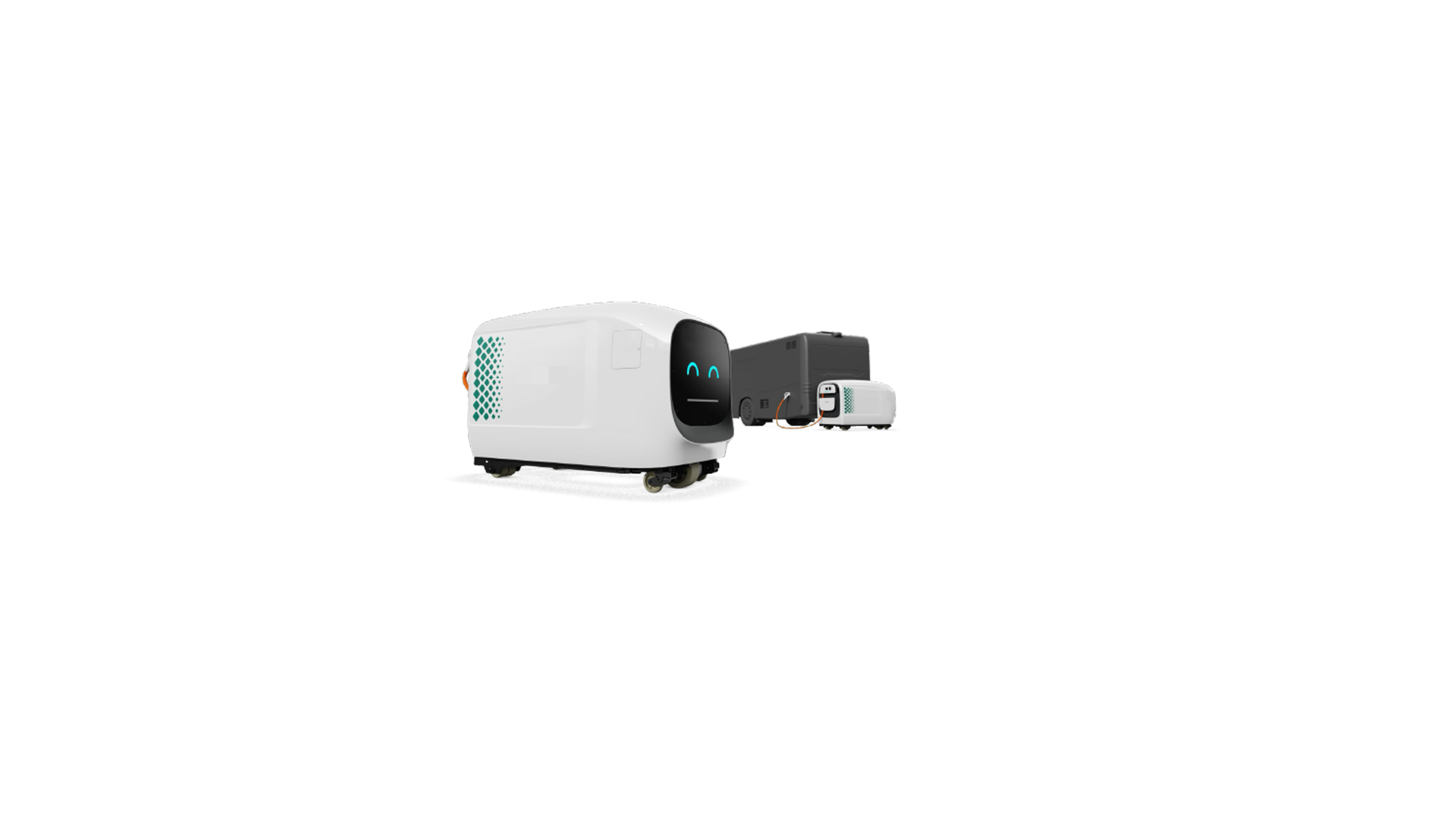

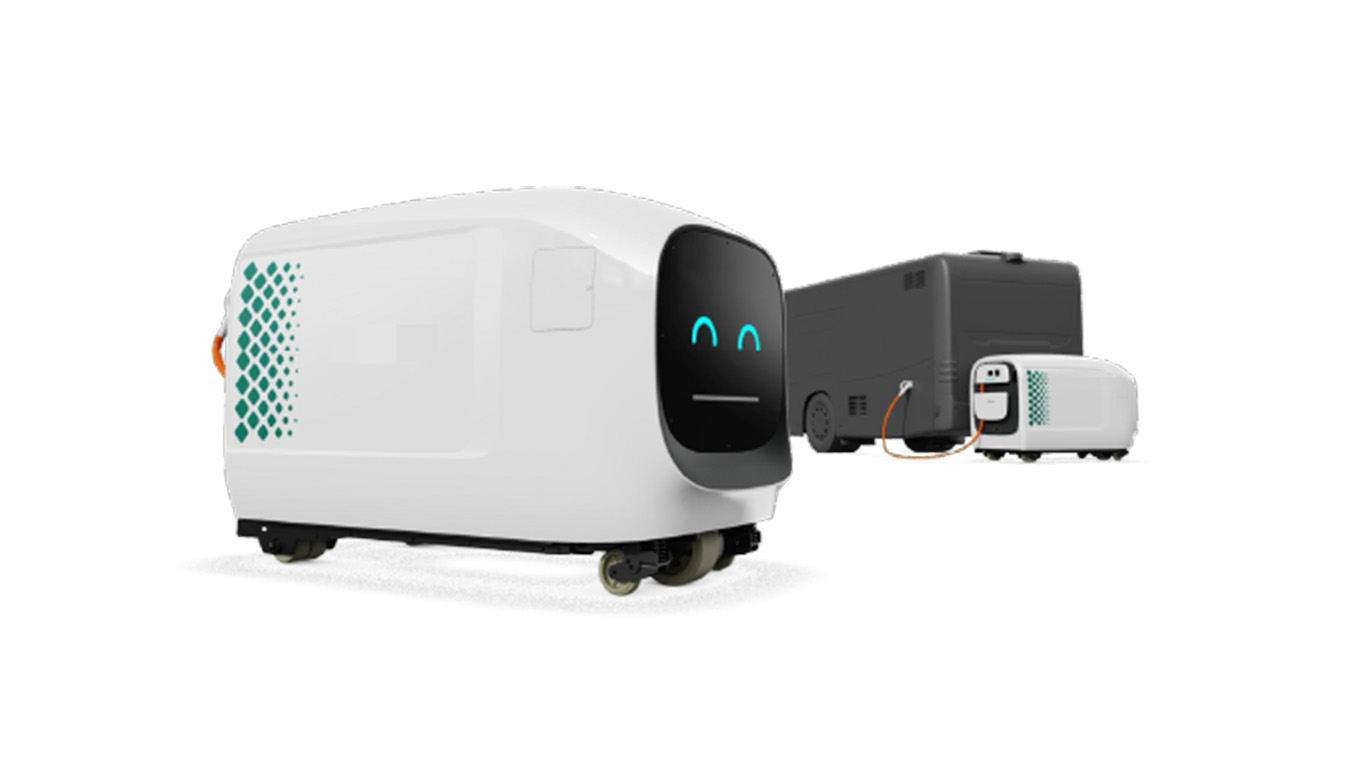

WAV Energy Smart Mobile Charger

Maximum Output Power
60 kW

How it works

Daytime Charging:
Mobile Chargers are recharged using the existing using available depot or on-site DC charging infrastructure.
Nighttime Deployment:
Once charged, Mobile Chargers are positioned directly at vehicle parking locations.
Bus Charging:
Buses are charged where they are parked, reducing vehicle movement, labor time, and operational disruption.
Cycle Repeat:
After vehicles return to service, mobile chargers are collected and recharged, ready for the next cycle.

Advantages

Innovation and Revolution

From "vehicle-to-charger" to "charger-to-vehicle"
Unrestricted by time, space and specific times

Flexibility and Intelligence

Truck mounted or mobile under own power
Remote operation and management

Safety and Fast Charging

Stable operation and proactive protection
One-click ordering, seamless charging
Charge with our recharger or Level 3 charger, NO PANEL UPGRADES

Energy Storage and Cost-Effectiveness

Peak-shaving and valley-filling with small scale "energy storage stations”
Free from grid and site reconstruction

Product Specifications:

Maximum power (kWh)
184.32
Battery capacity(Ah)
300

DC Output
Output Voltage Range (Vdc)
300-1000
Maximum Output Current (A)
150
Maximum Output Power (kW)
60
Efficiency
92%

DC Input
Input Voltage Range (Vdc)
260-900/Level 3 CCS1
Maximum Input Current (A)
150
Maximum Input Power(kW)
SAE1772 CCS1 110

Ambient Temperature Range( C )
-30~50
Ingress Protection
IP54
Communication Interface
Wireless Communication
Communication with Vehicles
DIN SPEC 70122:2008
Software Configuration
Charging protocol is self-applicable and can be expanded
Charging Method
Swipe Card/Touch Screen/Scan QR Code
Charging Connectors
CCS1/NACS
Maximum Speed
5 km/hr - 3.1 mph
Maximum Grade
8%
Dimensions(L*W*H)
2100*1054*1400 mm / 82.68*41.5*55.12 Inches
Weight
2150 kg/4,740 lbs
